Inicio /Productos/Central eléctrica portátil de batería/Home 1KW 2KW 3KW 24V AC DC Solar Power Station Off Grid Hybrid Solar System With 200ah Battery All In One Solar Sys

Home 1KW 2KW 3KW 24V AC DC Solar Power Station Off Grid Hybrid Solar System With 200ah Battery All In One Solar Sys

1 Unit
MOQ
$395.00(1 - 99 Units) $375.00(100 - 499 Units) $365.00(500 - 999 Units) $355.00(>=1000 Units)
Precio
Home 1KW 2KW 3KW 24V AC DC Solar Power Station Off Grid Hybrid Solar System With 200ah Battery All In One Solar Sys
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Warranty: 3months-1year
Free installation service: No
Model Number: SP-5010
Application: Home, Commercial, Industrial
Solar Panel Type: Monocrystalline Silicon, Polycrystalline Silicon
Battery Type: Lead-Acid
Controller Type: PWM
Mounting Type: Ground Mounting, Roof Mounting
Load Power (W): 300-1500W
Output Voltage (V): 110v/220v/230v/240v
Output Frequency: 50/60hz
Work Time (h): 24 Hours
Certificate: CE/TUV/ISO9001/ISO14001
Pre-sales project design: Y
Color: Green
Protection: Short Circuit Protection
Specification: Normal
Product name: Off-grid Solar Power System
Output wave: Pure Shine Wave
Información básica
Certificación: CE/TUV/ISO9001/ISO14001
Model Number: SP-5010
Pago y Envío Términos
Supply Ability: 2000 Unit/Units per Month
Descripción de producto
Product Description

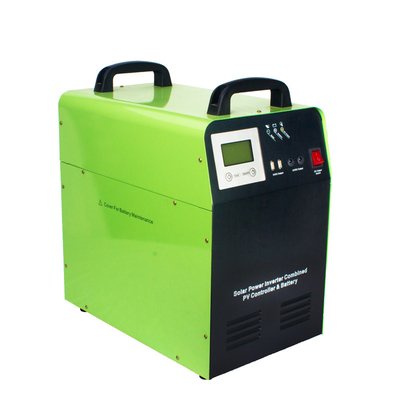

SI series inbuilt battery portable solar generator is is composed of inverter, solar charge controller and built-in battery, all in one.It was developed by our company since 2013 and popular to nowadays.The quality is stable. It has the following characteristics:

Product Description

Three modes

The mains supply preferred mode, energy-saving mode, and battery preferred mode

Small size and light weight solar power generator, portable solar system, solar generator

The weight of below 500w capacity is light to easy bring,over 1000w capacity with the wheels on the machine to move, more convenient for transportation and saves freight.

Two style batteries

1. 2000 cycles of high power lithium battery: has a service life up to 5 years.

2. Gel batteries: the price will be cheaper.

PWM Controller solar power generator, portable solar system, solar generato

Based on an MCU intelligent control technology,it realizes solar charge and discharge management for batteries for longer lives of systems.

Easy to use solar power generator, portable solar system, solar generato

Simple interface design, easy installation, ac ,5.0usb vdc and 12vdc ports for options, more convenient to use.

Easy maintenance solar power generator, portable solar system, solar generato

The rear cover is detachable for easy maintenance and battery replacement.

Product parameter

Model : FT

AL1000W

AL2000W

AL3000W

power rating

1000W

2000W

3000W

Battery

rated voltage

24VDC

24VDC

24VDC

AC Charge Current

30A (C0-C6 Can be set)

Battery Type

U0-U7 Can be set

Capacity

2*200AH-12V

Input

Voltage Range

85-138VAC/170-275VAC

frequency

45-65Hz

Output

voltage range

110VAC/220VAC;±5%( Inverter mode)

frequency

50/60Hz±1%( Inverter mode)

Output wave

Pure Sine Wave

Change time

<10ms(Typical load)

frequency

>85%(80% Resistive load)

overcharge

110-120%/30S;>160%/300ms;

Protection function

Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature protection

Pwm Solar Controller

Battery voltage

24(VDC)

Max Voltage

≤50(VDC);

Charge Voltage range

25-50(VDC);

Rated charge current

60A(Max)

Max Power

1600(W)

Overcharge Voltage

30VDC

Overcharge recovery voltage reovery voltage

28(VDC);

Floating charge voltage

27.2(VDC);

Operating ambient temperature

0-40℃

Storage ambient temperature

-15 - +50℃

Operating / storage environment

0-90% No Condensation

Dimensions: L * W * H (mm)

555*515*540

Packing size: L * W * H (mm)

640*600*695
