Inicio /Productos/Generador de respaldo de gas/20kw Weifang Good Quality Natural Gas Engine Generator Set Price HQF-20

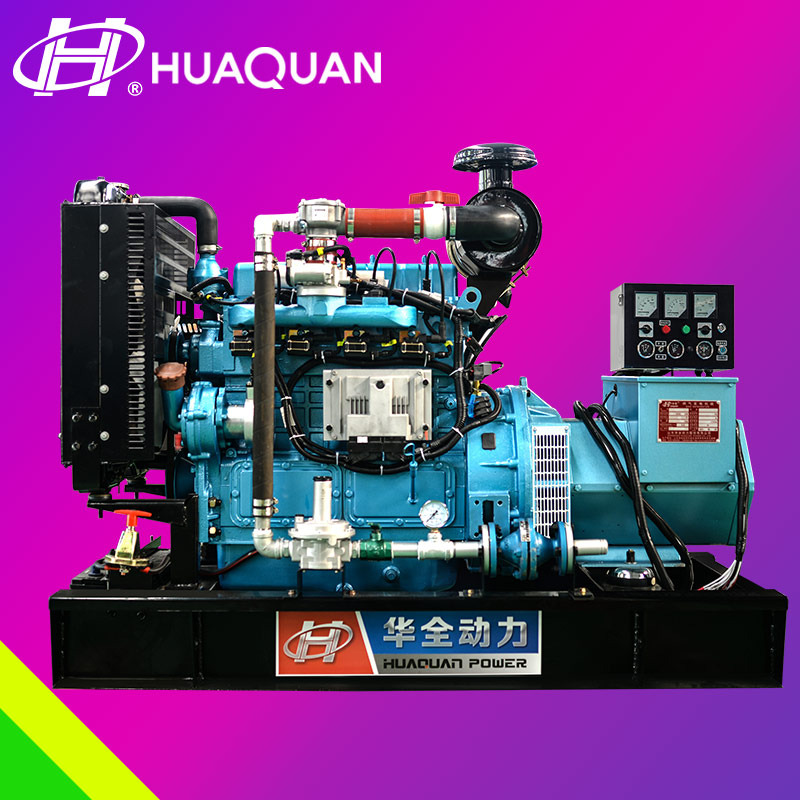

20kw Weifang Good Quality Natural Gas Engine Generator Set Price HQF-20

1 Set
MOQ
$3,092.00(1 - 1 Sets) $3,070.00(2 - 2 Sets) $3,054.00(>=3 Sets)
Precio
20kw Weifang Good Quality Natural Gas Engine Generator Set Price HQF-20
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Warranty: 3months-1year
Certificación: CE
Model Number: HQF-20
Rated Voltage: 400V / 230V
Rated Current: 36A
Speed: 1500r/min.
Frequency: 50HZ
Product name: Gas Generator Set
unit type: HQ20GF
Output Power: 20kw
Output current: 36A
Gas grade: LNG/CNG
Unit weight: 600kg
Información básica
Certificación: CE
Model Number: HQF-20
Pago y Envío Términos
Packaging Details: 1.plywood case packaging 2.as your requirements
Descripción de producto
Inquiry reminder
When inquiring about prices with online customer service, please copy the content below to fill in the requirements for the purchase of equipment, and provide your email and Wechat/whatApp, we will help you to develop an accurate detailed price list and send it to you!
Please copy the following content and send it to our customer service:
Email：
Wechat/whatApp：
How many kw do you need：
Required brand (such as: Cummins, Perkins, Yuchai, Weichai, Ricardo, Volvo, MTU, Shangchai)：
Destination Ocean Port：
Optional configuration(such as: silent canopy, mobile trailer, control system, ATS)：
The advantages of our generator
1、Huaquan 20kw gas generator set, external dimensions: 1650×650×1380 (L×W×H mm), unit weight: 600kg.
2、The gas consumption of this gas generator set (100% load): 0.6L/kW•h, the noise is about 95dB.
3、The engine part of the genset uses spark plug ignition, and is controlled by the ECU, which can accurately control the intakeair volume, ensure sufficient intake air, and save gas volume.
4、Equipped with Huaquan pure copper brushless motor, protection grade IP22, using three-phase four-wire, Y-type wiring, AVR automatic voltage regulation, voltage output accuracy is higher.
Company Profile


Huaquan Power generator provides a complete line of generators for commercial, industrial and residential application. We provide a wide range of well known brands of diesel generator from 1kw to 2000kw with competitive price. Ten years of experience in the backup power market enables us to provide a tailor made solution for you.
Genset parameters
20KW Weifang Series Gas Generator Set Technical Specifications
Technical parameters of generator set：
Unit model：
HQ20GF
Steady state voltage adjustment rate (%)：
≤± 1
Output power：
20Kw
Voltage fluctuation rate (%)：
≤ ± 0.5
Power factor：
COSΦ = 0.8 (lagging)
Transient voltage adjustment rate (%)：
+ 20 ～ －15
Output voltage：
400V / 230V
Voltage stabilization time (s)：
≤1
Output current：
36A
Steady state frequency adjustment rate (%)：
≤ ± 1
Rated frequency：
50Hz
Frequency fluctuation rate (%)：
≤ ± 0.5
Rated speed：
1500rpm
Transient frequency adjustment rate (%)：
+ 10 ~ -7
Gas grade:
LNG/CNG
Frequency stabilization time (S)：
≤3
Dimensions：
1650×650×1380（L×W×H mm）
Gas consumption (100% load):
0.6L/kW·h
Weight：
600kg
Acoustic noise (LP7m)：
≤95dB（A）
Technical parameters of gas engine:
Brand/origin：
Weifang Gas Engine
Cooling method：
closed water circulation cooling
model：
4100D-NG
Ignition method:
Spark plug ignition
Number of cylinders / Dare to mention structure：
4 / L Type
control method:
ECU control
Bore stroke：
100 × 115 mm
Intake method：
inhale naturally
Compression ratio：
16.5：1
Overload capacity：
110%
Start mode：
DC 12V Electric start
Speed：
1500rpm
Technical parameters of generator：
Brand：
Huaquan brushless generator
Protection level：
IP22
Model：
HQF-20
Wiring mode：
Three-phase four-wire, Y-connection
Rated power：
20kW
Adjustment method：
AVR (Automatic Voltage Regulator)
Rated voltage：
400V / 230V
Output frequency：
50Hz
Insulation class：
H class
Output factor：
COSΦ = 0.8 (lag)
The standard configuration of the generator set is as follows:
Ø EFI internal combustion engine (gas);
Ø AC synchronous generator (single bearing);
ØSuitable for ambient temperature 40 ℃ -50 ℃ radiator water tank, belt driven cooling fan, fan safety shield;
Ø Power generation output air switch, standard control screen;
Ø Unit steel common base (including: unit vibration damping rubber pad);
Ø Dry air filter, fuel oil, lubricating oil filter, start motor, and equipped with self-charging generator;
Ø Random information: original technical documents of gas engine and generator, generator set manual, test report, etc.
FAQ
1.What's your power range of Generators?
Answer: We can offer the range from 10kva~1000kva.
2.What's your delivery time?
Answer: Generally,we can delivery in 7 days after we get the deposit.
3.What are the payment methods for buying equipment?
Answer:
1、We accept T/T ,and 30% as the deposit,the balance payment should be paid before shipping.
2、We accept Alibaba credit guarantee payment.
3、We accept bank wire payment.
4.What's your warranty?
Answer: All our products we offer on year warranty.
5.What's your MOQ?
Answer:We accept the MOQ is 1 set.
Company qualification
National business license

National High-Tech Enterprise

China Shandong High-end Equipment Manufacturing Enterprise

National Intellectual Property Advantage Enterprise

Shandong Weifang Patent Award


China Shandong Quality Brand Enterprise

Preferred enterprise for major projects in Shandong Province, China in 2020

EU CE certification

National highest credit AAA level

ISO9001 national quality system certification
