Inicio /Productos/Generador de respaldo de gas/50Hz 150kW Super Silent Natural Gas Genset Generator / CHP Generator KDGH-150G

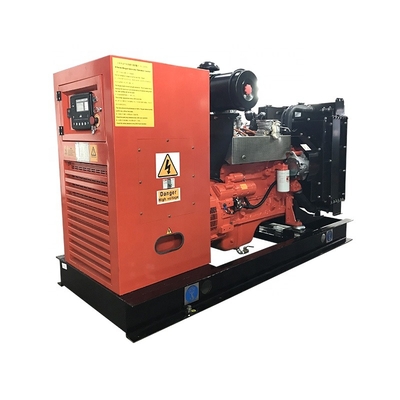

50Hz 150kW Super Silent Natural Gas Genset Generator / CHP Generator KDGH-150G

1.0 Sets
MOQ
50Hz 150kW Super Silent Natural Gas Genset Generator / CHP Generator KDGH-150G
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Warranty: 3months-1year, 18 months or 1000 hours
Certificación: CE ISO
Model Number: KDGH-150G
Rated Voltage: 400/380/220/230V
Speed: 1500rpm
Frequency: 50HZ
Product name: Gas Generator
Alternator: Stamford/Leroy Somer/Marathon
Control: Deepsea
Certificate: ISO9001:2000, ISO14000, ISO18000, CE
Cool Type: Water cooled/Air cooled
Type: Super Silent/Open
Información básica
Certificación: CE ISO, ISO9001:2000, ISO14000, ISO18000, CE
Model Number: KDGH-150G
Pago y Envío Términos
Packaging Details: Normal Packing: 1. Wooden case or plastic according to your gen-set. 2. In 20'' or 40'' container. 3. With tool kit, battery,rust-preventive liquid,silencer,pad,screw,shockproof pad and so on. 4. According to your request if you have any questions.
Supply Ability: 2000 Set/Sets per Year
Descripción de producto

ISO/CE verified 150kW Gas Generator Set/chp generator

Small power station / chp gas generator / backup or alternative power supply for hotel / sell the extra power to the mains power grid

Ratings

Rated Power

kVA

188

kW

150

Voltage type

50Hz,400/220V, 3 phases and 4 wires

*Ratings at 0.8 power factor

Performance Data

Engine Brand & Model HGT6L
Alternator Brand & Model LSA44.3VL14
Control System Deepsea DSE6120
Standard Noise Level@7m (Soundproof Sets) 75 dBA
Circuit Breaker Type 3 Poles MCCB
Frequency & Phase 50hz 3Phases + 4Wires
Engine Speed (RPM) 1500

*The above fuel consumption is calculate with the natural gas whose heat value is 35.8MJ/Nm3

Dimensions and Weights

Content Open type Soundproof Sets
Dimensions: (mm) L 2900 3800
W 950 1400
H 1550 2000
Weights (kg) 2000 3000

Engine Brand & Model: HGT6C

Engine Data

No. of Cylinders 6 in-line Engine power(KW) 176
Cycle 4 Stroke Cylinder Type Wet
Bore * Stroke (mm) 114 x 135 Compression Ratio 10.5:1
Induction Turbocharged Displacement (L) 8.9
Cooling Method Water cooled Governing Type Electronic
Starting method 24V DC motor Coolant capacity, engine only (L) 11.1
Lubricant Oil 15W40-CF4 or above grade Oil pan capacity (L) 27.6

Alternator Brand & Model: LSA44.3VL14, 50Hz.

Standard Leroy Somer Alternator Data

Power factor 0.8 Temperature rise 125K
Excitation system Brushless, self-excited Insulation class H
A.V.R. R250 Enclosure protection IP23
Voltage regulation ± 0.5 % Winding leads 12
Altitude ≤ 1000 m Ambient temperature (°C) 40
