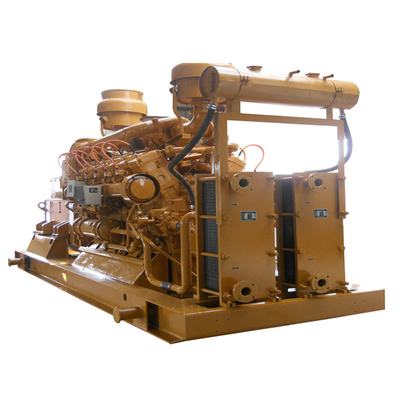

Name: Natural Gas Stand Generator Gas Generator Gas Generator 1000kw RH-500GFT
Brand: Natural Gas Stand Generator Gas Generator Gas Generator 1000kw RH-500GFT
SKU: RH-500GFT
Price: 1 USD
Availability: InStock
Rating: 4.7 (142 reviews)

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Warranty: 3months-1year

Certificación: CE, ISO

Model Number: RH-500GFT

Rated Voltage: 400/230v

Rated Current: 902A

Speed: 1000/1200rpm

Frequency: 50/60HZ

Product name: Natural gas backup generator generator de gas gas generator 1000kw

Engine brand: JPEC

Engine Type: Air-cooled Gas Engine

Fuel type: Natrual Gas Biogas Fuel

Start method: 24V DC Electrical Start

Alternator Brand: Siemens Etc

Alternator: Siemens Licence

Generator Output Power: 500kw

Power efficiency: 0.8(Lag) Gas Generator

Displacement: 71.45L

Información básica

Certificación: CE, ISO

Model Number: RH-500GFT

Pago y Envío Términos

Packaging Details: 1.plywood case 2.film with plastic foam 3.depending on client's requirement

Supply Ability: 20 Set/Sets per Month

Descripción de producto

Natural gas backup generator generator de gas gas generator 1000kw

Application field

Fuel: Natural gas, biogas, biomass gas, coal-bed methane gas, coal gas, oilfield associated gas, etc.

Specifications

Generator Model	RH-500GFT	RH-600GFT	RH-700GFT
Prime Power	500kw	600kw	700kw
Alternator brand	Siemens	Siemens	Siemens
Voltage and frequency	110v- 11000v 50/60HZ	110v- 11000v 50/60HZ	110v- 11000v 50/60HZ
Generator efficiency	32-36%	32-36%	32-36%
Engine model	12V190	12V190	12V190
Rotating Speed	1000/1200 rpm	1000/1200 rpm	1000/1200 rpm
Bore/Stroke	190/210mm	190/210mm	190/210mm
Displacement	71.45L	71.45L	71.45L
Generator Dimension	600019702375mm	6000x2100x2800mm	6000x2100x2800mm
Generator Net weight	11500kg	12000kg	13000kg
Lubricant oil average consumption	1.0g/kwh	1.0g/kwh	1.0g/kwh

Products Description

1. High configuration: main components are all world-renowned brands, cost-effective, stable and reliable.
2. Multi-option of engine, alternator, PLC remote control system. Well performed control system & monitor instrument. Easy to operate and maintain, low running cost.
3. Long continuous running hours: 24/7, 8000 hours per year.
4. Low operation and maintenance cost, high return.
5. Manufacturer, OEM provided.

Successful case

1. Russia project

The project is located in Russia, using 3 sets of 600kw natural gas-fired internal combustion generator sets. After the project operation, it provided stable power and heat for the customer's plant.

Natural gas backup generator generator de gas gas generator 1000kw

2. Rongcheng Garden Hotel Distributed Energy Station Project

The project is located in the basement of Rongcheng Garden Hotel, Changsha, using 3 sets1.1MW natural gas-fired internal combustion generator sets.

After the project is put into operation, the annual power generation capacity is

4.224 million kW, and the annual standard coal can be saved by 1348.6 tons.

The comprehensive utilization rate can reach 70%-85%.

3. Changsha Huanghua International Airport T2 Terminal Project

This project is located in Changsha City, Hunan Province, using 1.1mw

natural gas generator.

Gas generator Chinese gas engine generator 500kw natural gas generator

4.Chengdu Biomass Gas Generation Project

The project is located in Chengdu, with a installed capacity of LY800GH-S biomass gas
generator set. It uses tar-free biomass gas fuel. When the low heat value is
1200kcal/m3, the unit power is 800 kW.

5.Changde Jinshi biogas project

Provided 2 x 1.1MW biogas generator sets forChangde Jinshi Biogas Project, and the
project is under construction.

Natural gas backup generator generator de gas gas generator 1000kw

6. Xiaohuigou Coal Mine Low Concentration Gas Power Generation Project

The project is located in Xiaohuigou Coal Mine, Mayutown, Qingxu County, Shanxi Province.
The construction scale is 10MW, and the annual power generation is expected to be
7200×104kW•h. Provides 10×1MW low-concentration gas engine.

Certificate ,visitors & shipment

Spare parts

Recommend Products

FAQ

Q1. How to find suitable generator?
A:Tell me how many kw you need, and gas type, voltage and frequency, then right model will be recommend.

Q2. What is your transport?
A: Generator set recommend ship by sea or by cargo on land.

Q3. What is your terms of payment?
A: 30% TT in advance as deposit, and 70% balance paid before delivery.

Q4. What is your terms of price?
A: EXW, FOB, CIF, CFR.

Q5. How about your delivery time?
A: Normally 25 days - 50 days after we receive advance payment. Depends on order size and generator model.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. Inspect by third party also acceptable.

You are highly welcomed to ask questions and leave message.
